Chip production process suppliers

 semi automatic potato chips machine potato chips making machine set



1.Machine detials:

 Brief introduction of semi-automatic potato chips making machine

Potato chips production line produced in Shandong Bayi Food Industry Equipment Co.,Ltd. mainly uses fresh potatoes as raw materials. The capacity we can produce ranges from 50kg/hr to 1tph.

We have mature technology for this line. By changing the configuration of the machines, we can also produce apple chips, banana chips and French fries.



Flow chart of lays potato chips maker

Materials input----peeling----sorting---hoisting & Vibration---Slicing---blanching-----air drying----frying---deoiling----seasoning-----sorting-----(packaging).

Machines used for low cost potato chips making machine

1) Hoister  2)peeler  3)material sorting conveyor  4)hoister& Vibrator 5)slicer 6)blanching machine 7)air dryer  8)continuous fryer 9) deoiling conveyor  10) seasoning machine 11)sorting conveyor 12)Multi head packaging machine.

 Technical parameter of machines for potato chips production line

No.	Product name	Model	Power(kw)	Size(mm)	Note
1	hoister	TSJ-2500*800	0.37	2500*900*1300
2	peeler	QPJ-2500*840	2.2	2500*840*1300	Peeling efficiency:85%
3	Sorting conveyor	SSJ-2500×600	0.37	2500×600×1000
4	Hoister+vibrator	TSJ-800	0.37	3000×800×1350
5	slicer	QTJ-800	0.75	820*510*870	Thickness: 2-20mm
6	Blanching machine	PTJ-5000*800	0.75	5000*1400*1350
7	Air dryer	LSJ-4000*800	0.75	4000*1200*1800
8	Continuous fryer	BYL-5500*800	160	5500×2000×2000	Frying time:1.5-4 minutes
9	Deoiling conveyor	SSJ-2500*800	0.37	2500×900×1000
10	Seasoning machine	TBL-700	0.75	3000*850*1650
11	Sorting conveyor	SSJ-3000×1200	0.37	3000*1200*900
12	Packaging machine	optional



Detailed introduction of machines for Potato chips production line:

1. Hoister

1) Mesh belt uses304 SUS food grade stainless steel.

2) Supporting frame is 304 SUS 50*50mm square tubes.

3) 2mm of thickness stainless steel.

4) Motor is frequency conversion speed adjustment.

Automatically lift the potatoes. Labor-saving and durable is use.



2. potato chips cleaning peeling and cutting machine for mini potato chips making machine

1)use SUS 304 food grade stainless steel.

2)Rollers are made from wearable, anti-acid corrosion and anti-alkali corrosion materials. Durable in use.

3)Rollers are designed in swinging shape, no dead angle in removing the peels.

4)The machine adopts high precision one-time laser symmetrical cutting, ensuring the symmetrical structure of machine body. Easy and convenient in maintenance with long lifespan.

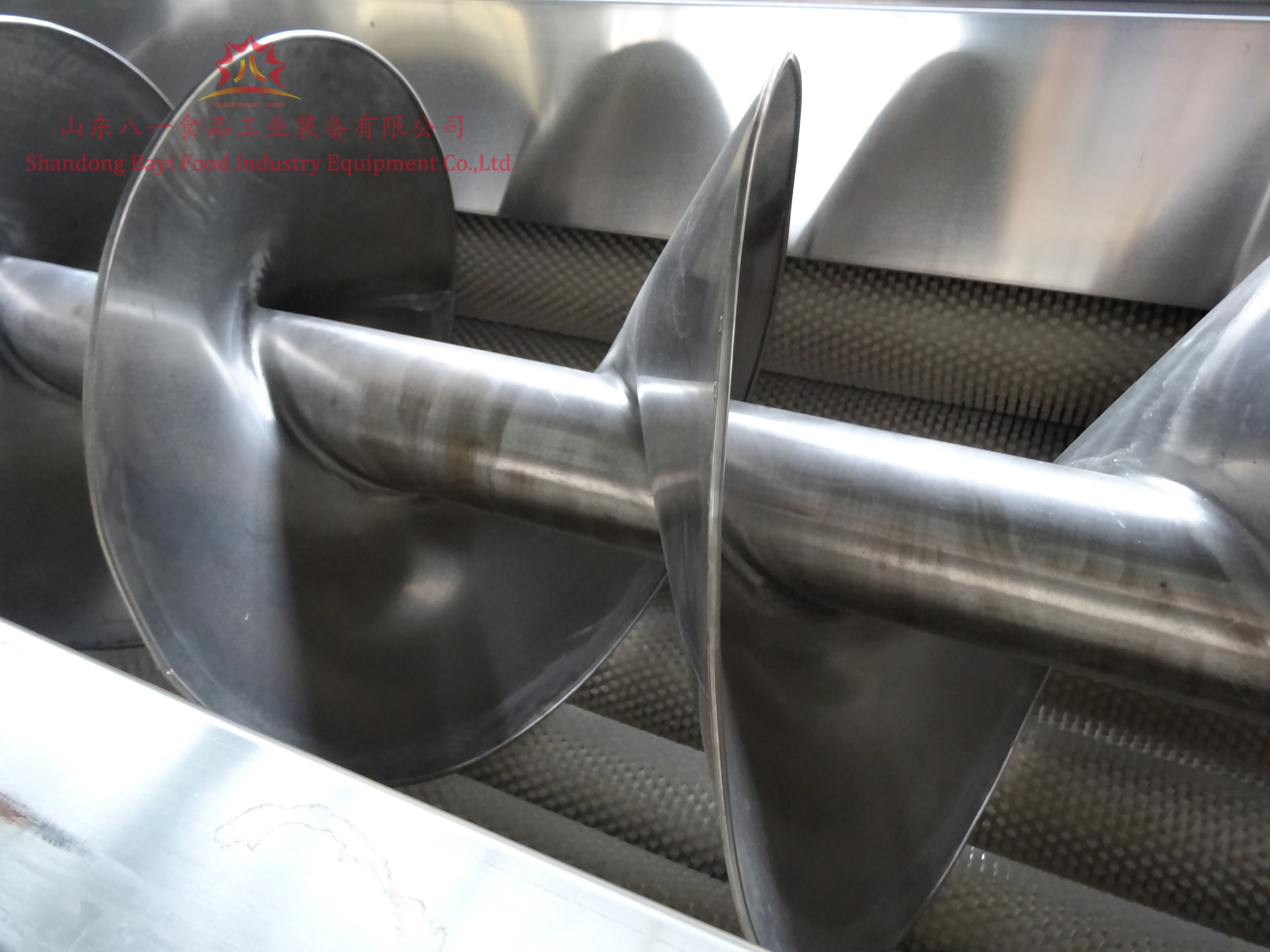

5)Spiral push rod design. Automatic discharging and adjustable discharging time.

6)Top part has water spraying device. Pipeline is stainless steel. Thickness is 2mm stainless steel plate.



3.Inspection conveyor for potato chips machine

1)This conveyor is used to sort out and conveyor the inappropriate potatoes. There are materials recycling port on the two sides of the conveyors. The bottom part of the recycling port has conveying structure.

2)Food grade PVC mesh belt. Durable in use and no damage to the potatoes. Mesh belt speed frequency is adjustable.

3)Supporting frame is 40*40mm square tubes. Side plate thickness is 2mm stainless steel 304.



4)Materials hoister+Vibrator for potato chips making machine

1)Mesh belt uses304 SUS food grade stainless steel.

2)Supporting frame is 304 SUS 50*50mm square tubes.

3)2mm of thickness stainless steel.

4)Motor is frequency conversion speed adjustment.

5)Discharging part has water washing port.

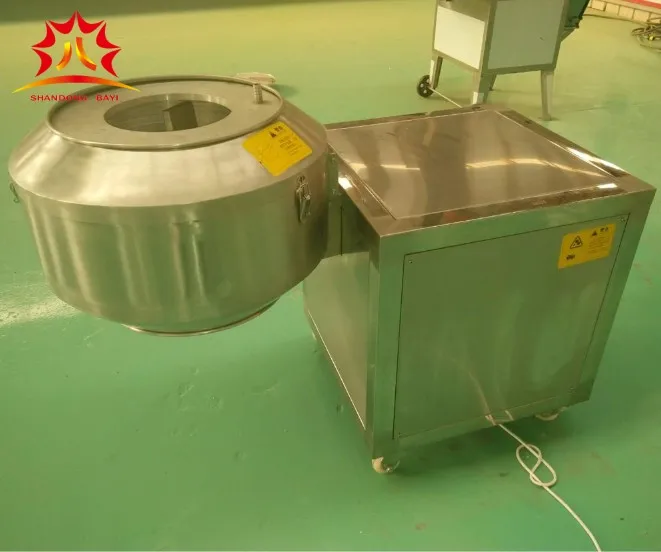

5.Potato slicer for chips potato making machine

1)sizes of the potato chips: 2MM,6MM,8MM,10MM,12MM,15MM.

2). Adopt SUS 304 food grade material.

3). Reasonable machine structure. Input port is specially designed to avoid being cut.

4). Easy to operate, convenient in cleaning, labor-saving and saving cost.



 6. Blanching machine for fully automatic potato chips production line

1) This machine is suitable for the washing of the seafood, fruits, vegetables, mushrooms and roots of the vegetables.

2) Inner body is 3mm stainless steel 304 plate. No leakage of water. Exterior body is 2mm stainless steel 304 plate.

3) Under the strike of the high pressure water bubbles, materials are tumbled in the water, which can effectively separate the mud, sand, debris and other materials. It has the features of great cleaning capacity,high washing efficiency,no damage to the materials, stable operation and saving water resources. At the end section of the air bubble cleaning, bringing materials to the next section through conveyor. In the conveying process, materials are sprayed and cleaned once time by high pressure water pump.

4) Pipelines are aligned horizontally. Water discharging ports are set at one side of the machine.



7. Air drying machine for potato chips making machine plant

5) Cooling the material by air. There are two sections of the mesh belt. Materials are got tumbled from first section to the second section, ensuring two parts of the materials can be dried.

6) Mesh belt is stainless steel spiral belt. Operation speed is manual controlled.

7) Centrifugal fan is 0.37kw. Side plate thickness is 2.5mm 304 stainless steel plate.

8) Stainless steel plate is installed under the mesh belt to ensure the floor is clean.

 8. Frying line for chips making machine potato

1) The body of the fryer uses SS 304 material. Side plate uses 4mm stainless steel plate. Bottom part uses 5mm stainless steel plate.

2) Materials can fried are potato chips, French fries and snacks.

3) Discharging oil cover and mesh frame can be lifted separately, which is easier to be cleaned.

4) There are 4 pieces of temperature control point, which control the temperature of each section. Stainless steel electric heating pipes.

5) Precision temperature control system ensures the frying medium temperature is between ±2℃.



9.Deoiling conveyor for potato chips making machine automatic

1)Mesh belt control is frequency conversion speed control. Oil is removed from air drying. Side plate thickness is 2.5mm stainless steel material.

2)Bottom part of the conveyor has the oil receiving box to keep the floor clean.

3)High efficiency low noise axial flow fans are added to get rid of oil fast.

10.seasoning machine for potato chips making machine set

1)The discharging part is stainless steel punched plate which can make the powder get leaked.

2)The single roller flavoring machine can spray powder automatically. High capacity, evenness in mixing materials, automatic discharging.



11. Sorting conveyor for potato chips machines production line

1) The mesh belt is a food-grade SUS 304 stainless steel spiral mesh belt. Running speed is manually adjusted.

2) The supporting frame is 40*40mm stainless steel square tubes.

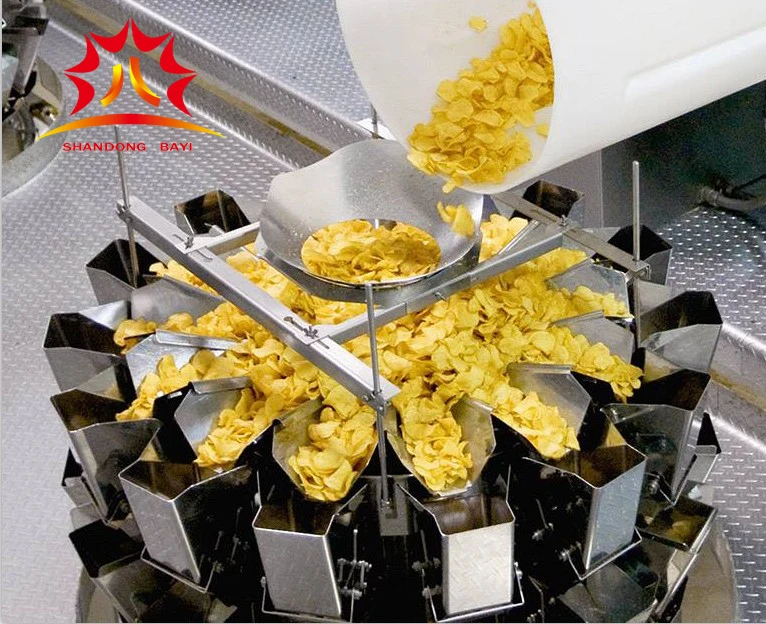

12. Packaging machine for lays potato chips production line

Company Information

Company Information of Shandong Bayi Food Industry Equipment Co., Ltd.

Established in 2015, Shandong Bayi Food Industry Equipment Co., Ltd. is located in Zhucheng, Weifang city with convenient transportation.  The factory covers about 50,000 m2 with more than 70 working staff. We have our own research and development center. The main products of Bayi are Vacuum fryer, potato chips production line, French Fries process line, banana chips plant, and other auxiliary equipment such as potato peeler, potato slicer, fruit drying oven, fruit and vegetable washing line, and pasteurization line.
